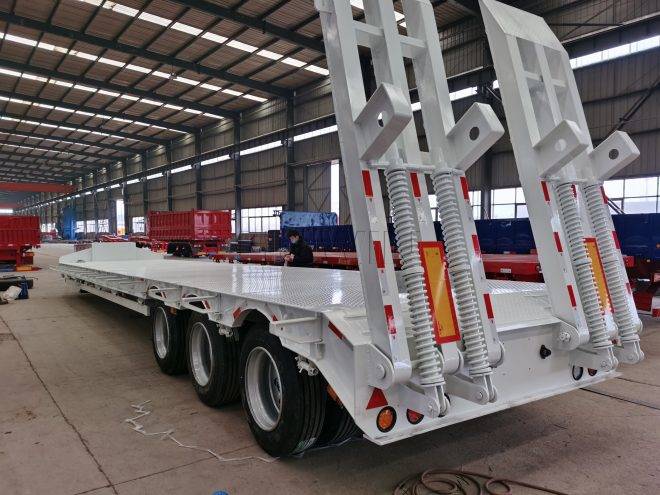

12Meter Mechanical Suspension Lowbed Semi Trailer
Axle Quantity
3 Axles
Payload(kg)
60,000
Suspension
Mechanical suspension
- Lowbed semi-trailer
Product Description
Our service
Warranty and Our advantage
VEHICLE CONFIGURATION
| Overall Dimension | 12000×3000×1320(mm) |
| Tare weight | 10000 （kg） |
| Pay Load | 60,000 kg |
| Wheel base | 6090+1310+1310 (mm) |
| Cargo platform | 8000×3000 mm(with double sides extension , each side 250 mm ) height 1100mm |
| Chassis | Material:Q345 |
| Upper flange: 20 (mm) | |
| bottom flange: 20 (mm) | |
| middle flange ：10 (mm) | |
| Axle | 3 units BPW / FUWA 13 ton |
| Suspension | Mechanical suspension |
| Leaf Spring | 12 pieces 10×120 (mm) |
| Ladder | Mechanical ladder/Hydraulic ladder |
| Brake system | Dual line braking system , Wabco brand relay valve , |
| King Pin | 2.5 inch or 3 inch |
| Landing Gear | Jost brand 28 tons |
| Tyre | 11.00-20, 11.00R20,12.00-20, 12.00R20 |
| Painting | Frame sandblasting, polyurethane primer, polyurethane topcoat |
- Lowbed semi-trailer
Product Detilas
