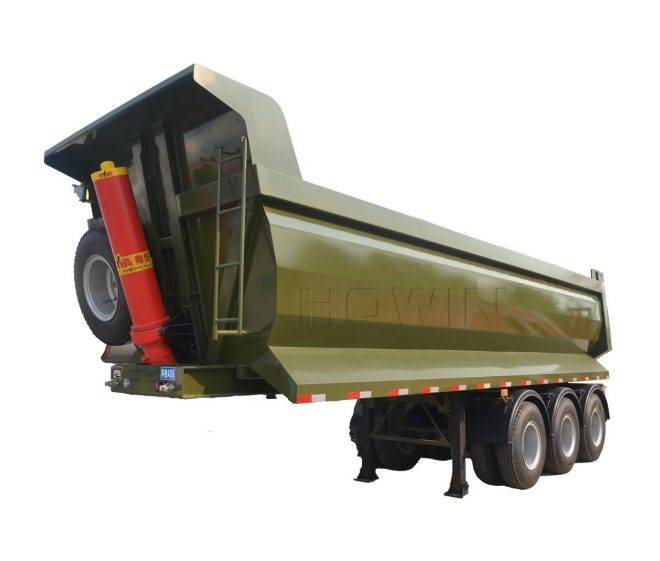

24CBM 3Axles U Type Tipper Semi Trailer
Axle Quantity
3 Axles
Box Body(mm)
7500×2500×1600
Payload(kg)
45,000
- Tipper semi-trailer
Product Description
Our service
Warranty and Our advantage
VEHICLE CONFIGURATION
| Overal Dimension | 10000×2500×3600 mm |
| Loading capacity | 45, 000 kg |
| Chassis | Material:Q345B, I beam height:500mm , Thickness of flange(upper, middle, bottom) :18/12/20mm |
| Axle | BPW, FUWA, HJ |
| cargo box | U shape , square ship 25 m³, 38 m³,45 m³, etc. |
| Dump type | Front lift ,middle lift , side lift |
| Suspension | Mechanical Suspension or booster Suspension |
| leaf spring | 10 pcs 90mm*130mm |
| Brake system | Dual line braking system , Wabco brand relay valve , |
| King Pin | JOST brand 2.5 inch or 3 inch |
| Landing Gear | Jost brand 28 tons |
| Tyre | 12R22.5,12.00R20, 315/80R22.5, 385/65R22.5 |
| Accessories | 1000 L Fuel tank, standard tool box, side guard |
