HOWIN

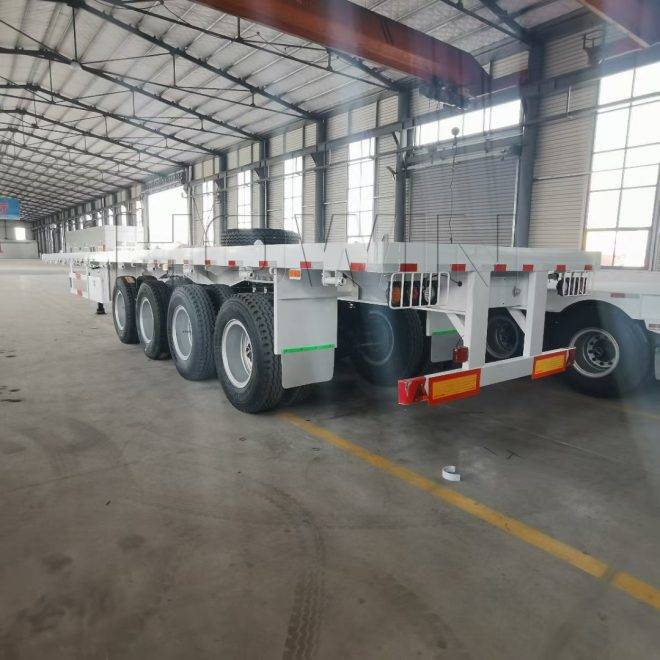

40Ft Mechanical Suspension Flatbed Semi Trailer
Axle Quantity
4 Axles
Payload(kg)
60,000
Suspension Type
Mechanic
- Flatbed semi-trailer
Product Description
Our service
Warranty and Our advantage
VEHICLE CONFIGURATION
| Overal Dimension | 12500x2500x1600 (mm) |
| Tare Weight | 78,000 kg |
| Chassis | Material: Q345 |
| Height:500mm, upper flange:14mm, bottom flange: 16mm, middle flange: 8mm | |
| Through bean:12# channel stee | |
| Frame bean:16# channel steel | |
| Axle | 4 units BPW / FUWA / HOWIN brand |
| Tire | Triangle / LingLong 12r22.5, 315/80R22.5 20RP, 385/60R22.5 |
| Platform floor | 3mm pattern sheet |
| Suspension | Mechanical suspension |
| Leaf spring | 8 sets 12 pieces 12×100 (mm) |
| Brake system | Wabco brand dua line braking system |
| King Pin | 50# or 90# |
| Landing Gear | Jost A300C single operation |
| Twist lock | ISO standard 12 units twist lock |
| Accessories | 30L water tank, standard tool box, side guard |
- Flatbed semi-trailer
Product Detilas
