SINOTRUK

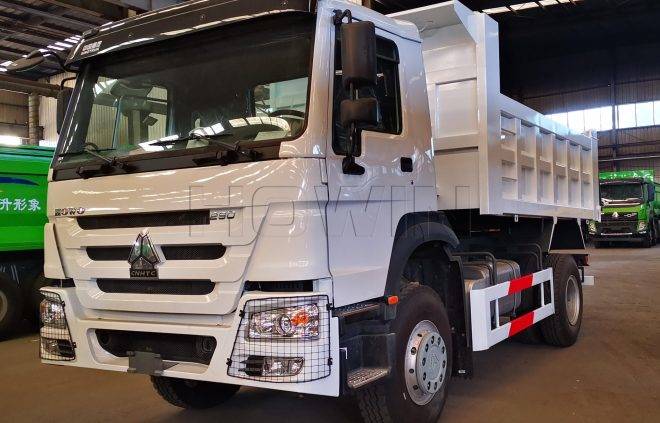

HOWO 7 4×2 Dump Truck
Driving Type
4×2
Box Body(mm)
4200*2300*1500
Application
Construction, mining, and other heavy-duty transport operations
- Dump Truck
Product Description
Our service
Warranty and Our advantage
PRODUCT FEATURE
The SINOTRUK HOWO 7 4×2 Tractor Truck is a versatile and efficient heavy-duty truck, primarily designed for medium to long-distance hauling of lighter loads compared to the 6×4 models. Its 4×2 axle configuration (one drive axle and one steering axle) makes it ideal for smoother roads and urban transport where high maneuverability and fuel efficiency are essential.
PARAMETERS
| Model | HOWO-7 4×2 DUMP Truck | |
| Chassis Model | ZZ4187V3617B1 | |
| Drive type | 4×2 | |
| Kerb Weight(kg) | 7950 | |
| payload (kg) | 18000 | |
| Dimensions LxWxH(mm) | 6125×2494×3125 | |
| Wheelbase(mm) | 3800 | |
| Cabin | Model | H76 |
| Engine | Model | WP10.380E22 |
| Horse Power(Hp) | 380 | |
| Maximum torque(N ·m/rpm) | 1600N ·m/1050-1400rpm | |
| Rated power(kW/rpm) | 280kW/2200rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 9.726 | |
| Transmission | Model | HW19710+HW50 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD71 (Drum) 7100 |
| rear axle Load capacity(kg) | MCX16ZG 16000×1 | |
| Ratio | 4.80 | |
| Chassis | Thinkness(mm) | TGA |
| Suspension | Type | Leaf springs(3/9+6) |
| Steering | Model | Bosch |
| Fifth Wheel | Model | 2.5 inch |
| Tire | Mode | 12.00R24,315/80R22.5 |
| Superstructure | body size(mm) | 4200×2300×1500 |
| Thinkness(mm) | bottom 8 ,side 6 | |
| Lift type | Milddle , T type | |
- Dump Truck
Product Detilas
