SINOTRUK

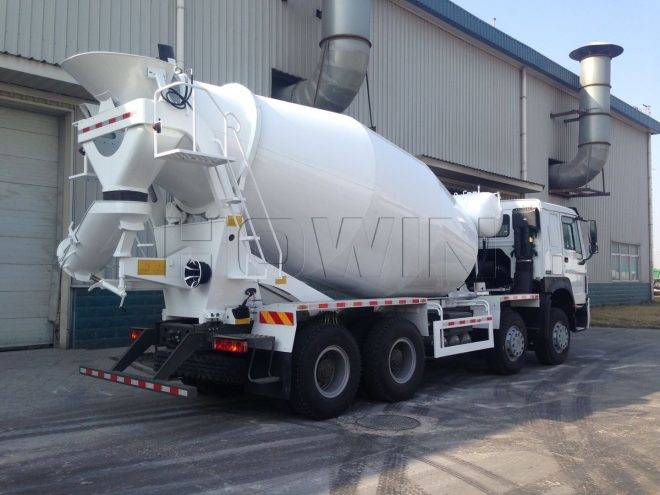

HOWO 8×4 Concrete Mixer Truck
Driving Type
8×4
Mixer Tank Volume
14-16 m³
Application
Delivering and mixing concrete
- Mixer Truck
Product Description
Our service
Warranty and Our advantage
PRODUCT FEATURE
1. High Payload Capacity: Able to transport large quantities of concrete in a single trip, reducing the need for multiple vehicles.
2. Reliable Performance: SINOTRUK HOWO-7 is known for its robust performance and durability in harsh working environments.
3. Fuel Efficiency: Advanced engine designs minimize fuel consumption while maintaining high performance.
4. Customizable: Available with various configurations to meet specific needs of different construction projects.
PARAMETERS
| Model | HOWO7 8×4 Concrete Mixer Truck | |
| Chassis Model | ZZ1317V3267B1 | |
| Drive type | 6×4 | |
| Kerb Weight(kg) | 17000 | |
| Payload(kg) | 40000 | |
| Dimensions LxWxH(mm) | 10900x2500x3950 | |
| Wheelbase(mm) | 1800+3625+1350 | |
| Cabin | Model | H76 |
| Engine | Model | WP12.400E201 |
| Horse Power(Hp) | 400 | |
| Maximum torque(N ·m/rpm) | 1800N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 294kw/1900rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 11.596 | |
| Transmission | Model | HW19710 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 (Drum) 9500 |
| rear axle Load capacity(kg) | MCP16ZG 16000×2 | |
| Ratio | 5.73 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(10/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 600 |
| Tire | Mode | 12.00R24,315/80R22.5 |
| Barrel | Tank size(mm) | 14 m³ |
| Dished End | Q345 8mm | |
| Front Cone | Q345 5mm | |
| Mid section | Q345 5mm | |
| Rear Cone | Q345 5mm | |
| Blade | Q345 4mm | |
| Hydraulic | Motor | Eaton 5433 |
| Pump | Eaton 5423 | |
| Gearbox | PMB6.5/ZF | |
| Water system | ater tank Volume | 600 L |
| System | Pressurized water supply system | |
| Working Pressure | 2 Bar | |
