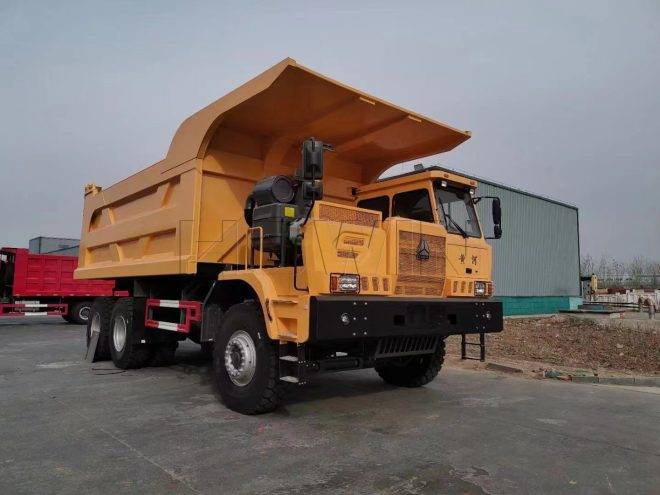

HOWO 6X4 Mining Dump Turck
Driving Type
6×4
Box Body(mm)
5600*3100*1800
Application
mining transportation
- Dump Truck
Product Description
Our service
Warranty and Our advantage
PRODUCT FEATURE
High Load Capacity: Specifically designed for transporting heavy, bulk materials in mining and quarrying operations.
Durability: Reinforced dump body and chassis ensure long-lasting performance in harsh environments.
Cost-Effective: Competitive pricing with low maintenance costs.
Fuel Efficiency: Advanced engines minimize fuel consumption while maintaining high power output.
Customizable Options: Configurations available to meet specific operational requirements.
PARAMETERS
| Model | HOWO 6X4 Mining Dump Truck | |
| Chassis Model | ZZ3257V3847B1 | |
| Drive type | 6×4 | |
| Kerb Weight(kg) | 13500 | |
| Payload(kg) | 35000 | |
| Dimensions LxWxH(mm) | 8800×3326×4350 | |
| Wheelbase(mm) | 3800+1500 | |
| Cabin | Model | HW7D |
| Engine | Model | D12.42T2 |
| Horse Power(Hp) | 420 | |
| Maximum torque(N ·m/rpm) | 2300N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 294kw/1900rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 11.596 | |
| Transmission | Model | HW21712 |
| Gear position | 12 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | 12000 |
| rear axle Load capacity(kg) | 26000×2 | |
| Ratio | 5.73 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(11/11/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 500 |
| Tire | Mode | 14.00-25 |
| Superstructure | body size(mm) | 5600 ×3100× 1800 |
| Thinkness(mm) | bottom 14 ,side 16 | |
| Lift type | Front positioned, HYVA cylinder | |
