SINOTRUK

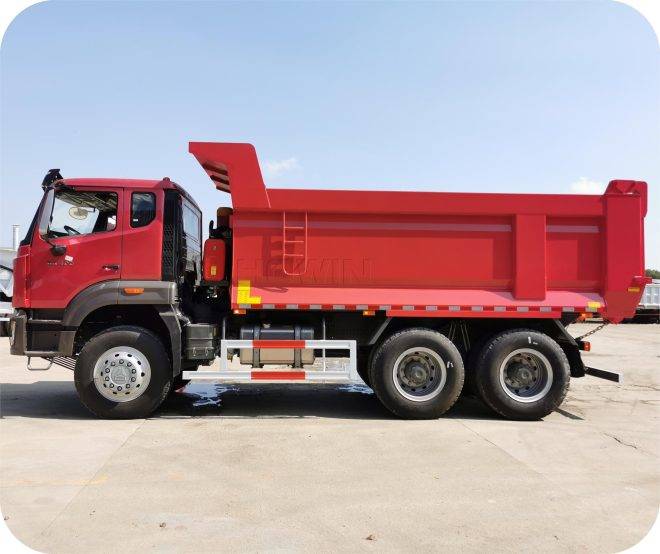

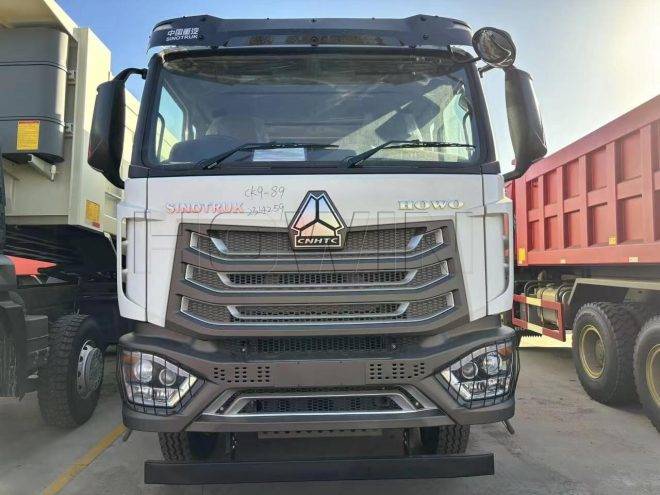

HOWO NX 6×4 Dump Truck
Driving Type
6×4
Box Body(mm)
5600*2300*1500
Application
Construction, mining, and other heavy-duty transport operations
- Dump Truck
Product Description
Our service
Warranty and Our advantage
PRODUCT FEATURE
High Load Capacity: Designed for heavy-duty operations with a robust structure.
Reliability: Known for dependable performance in harsh environments.
Cost Efficiency: Competitive pricing and fuel-efficient engine options reduce operational costs.
Customization: Available in various configurations to meet specific industry needs.
PARAMETERS
| Model | HOWO-NX 20m³ dump truck | |
| Chassis Model | ZZ3257V384JB1 | |
| Drive type | 6×4 | |
| Kerb Weight(kg) | 13500 | |
| Payload(kg) | 35000 | |
| Dimensions LxWxH(mm) | 8600×2500×3300 | |
| Wheelbase(mm) | 3625+1350 | |
| Cabin | Model | H77L |
| Engine | Model | WP12.400E201 |
| Horse Power(Hp) | 400 | |
| Maximum torque(N ·m/rpm) | 1800N·m/1050-1400rpm | |
| Rated power(kW/rpm) | 294kw/1900rpm | |
| Emission | Euro Ⅱ | |
| Displacement | 11.596 | |
| Transmission | Model | HW19710+HW50 |
| Gear position | 10 forwards &2 reverses | |
| AXLE | Front axle Load capacity(kg) | VGD95 (Drum) 9500 |
| rear axle Load capacity(kg) | MCP16ZG 16000×2 | |
| Ratio | 5.73 | |
| Chassis | Thinkness(mm) | 8+8/300 |
| Suspension | Type | Leaf springs(10/12) |
| Steering | Model | Bosch |
| Fuel tank capacity | Volume(L) | 300 |
| Tire | Mode | 12.00R24,315/80R22.5 |
| Superstructure | body size(mm) | 5600 ×2300× 1500 |
| Thinkness(mm) | bottom 8 ,side 6 | |
| Lift type | Milddle , T type | |
- Dump Truck
Product Detilas
