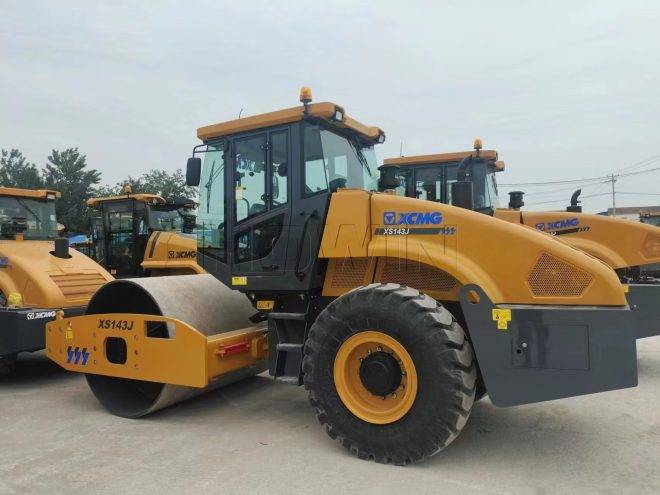

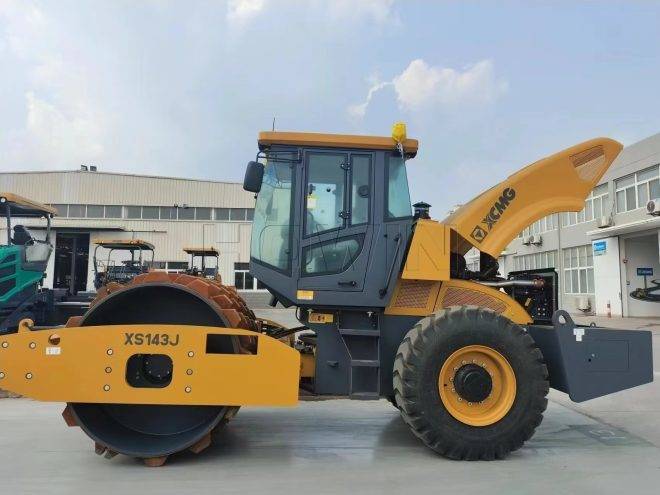

Single drum rollers & soil compactors XS143J
Operating Weight(kg)
14000
Axle Load Front(kg)
7300
Axle Load Rear(kg)
6700
- Road Machinery
Product Description
Our service
Warranty and Our advantage
PRODUCT DESCRIPTION
XS143J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine sol. blasting rock and clayey soil. etc, and it is also suitable to the compaction of concrete and stabilized soil base materials in various large projects. with the maximum working depth up to 1.0m and above. Thus. it is a kind of important compaction equipment in the construction of large projects such as the expressway railway, port, etc.
PARAMETERS
| Item | Unit | Parameter |
| Operating weight | kg | 14000 |
| Axle load,front | kg | 7300 |
| Axle load,rear | kg | 6700 |
| Static linear load | N/cm | 315 |
| Engine manufacturer | – | SDEC |
| Engine Model | – | SC4H140.1G2 |
| Rated Power | kW/rpm | 103/1800 |
| Speed range(Forward) | ||
| Speed(1) | km/h | 2.85 |
| Speed(2) | km/h | 5.08 |
| Speed(3) | km/h | – |
| Speed(4) | km/h | |
| Speed range(Backward) | ||
| Speed(1) | km/h | 2.88 |
| Speed(2) | km/h | 5.02 |
| Speed(3) | km/h | – |
| Vibration frequency | Hz | 28/33 |
| Vibration amplitude | mm | 1.9/0.95 |
| Centrifugal force | kN | 274/190 |
| Working width | mm | 2130 |
| Max. gradeability | % | 30 |
| Track radius, out | mm | 6800 |
| Overall dimensions | mm | 6150x2300x3200 |
